ADDCool is now the Sole Authorized Distributor for After Sales Support and Service Partner of M/S Stirling Cryogenics BV-The Netherlands. Once you order a Liquid Nitrogen Plant to Stirling, your responsibility ends there. Yes, you read it right – we install, we maintain and we take care of its Life Cycle, including all Services, Spare Parts and its accessories. Stirling Plants range from 2.5 lit/ hour to 150 lit/ hour at the most economic power equations, owing to the best possible efficiency amongst all contemporary technologies. In India, more than 400 plants are installed and most of them are still in operation, including Animal Husbandry, Research Institutes, Educational Institutes, Atomic Research and other Applications.

ADDCool is just a Call Away for Your Needs of Producing your Own Liquid Nitrogen through Stirling LN2 Plants.

StirLIN Products Range

StirLITE

StirLIN-1 Economy

StirLIN-1 Compact

StirLIN-2

StirLIN-4

StirLIN-8

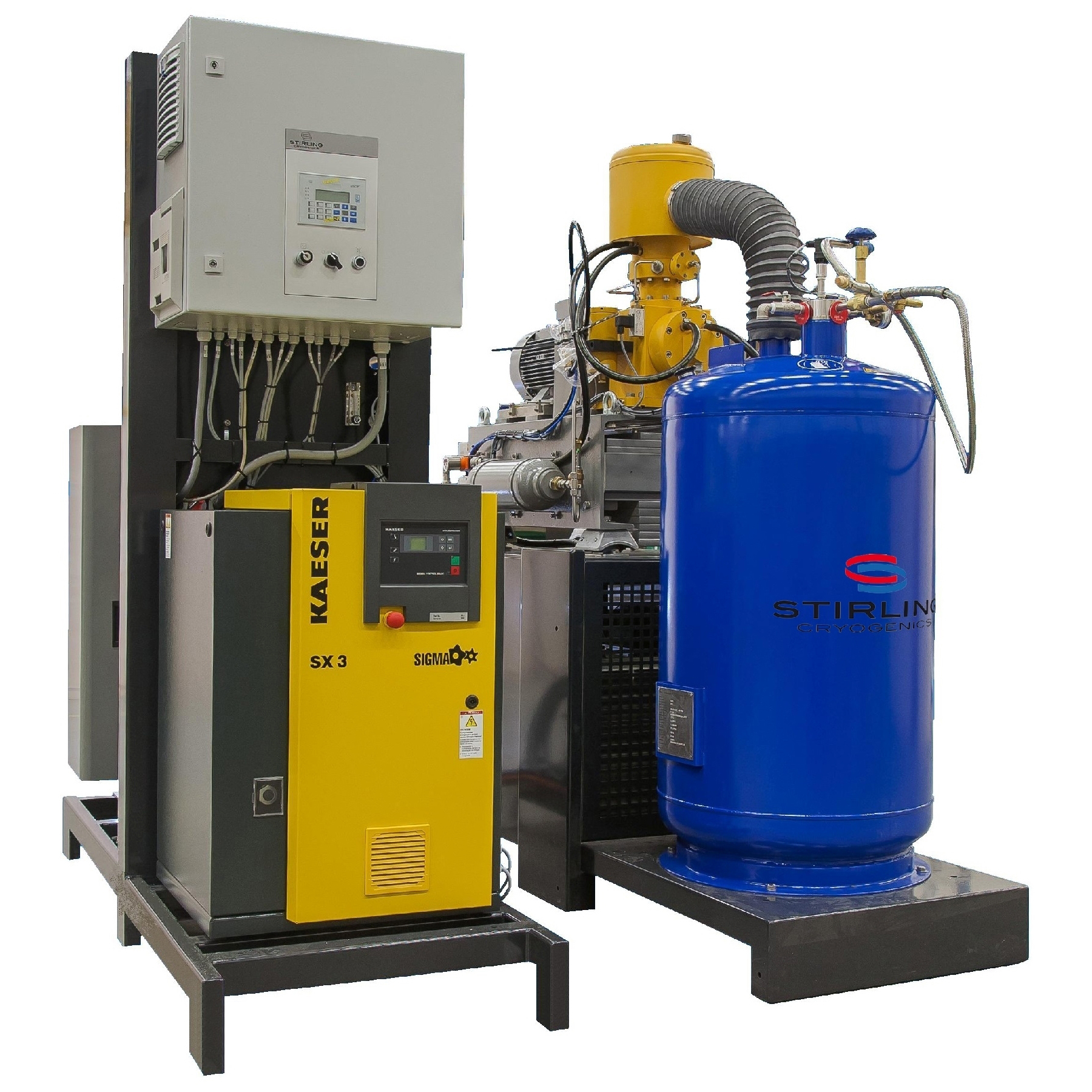

StirLITE
Up to 3.5 liters/hr LN2

Technical information

  • Production capacity: at least 2.5 liters of liquid nitrogen per hour
  • Storage capacity: 200 liters
  • Purity: 99% nitrogen + inerts
  • Maintenance: every 6,000 operating hours
  • Power consumption: 9 kW (integrated chiller)
  • Power supply (3 phase): 200 to 480 V, 50/60 Hz (as per client’s local requirements)
  • Start-up time: within 10 minutes
  • Start/stop procedure: fully automatic, single switch operation
  • Advised plant room (l x w x h): 3,50 x 3,50 x 3.00 m
  • Weight: 1.350 kg
  • Ambient temperature: up to 45°C, 113°F
  • Relative humidity: up to 95%
  • Storage vessel pressure: 1 bar(g)
  • Site installation:
  • Noise level: ≤72 dBA

Technical information

  • Production capacity: at least 5 liters of liquid nitrogen per hour
  • Purity: 99% nitrogen + inerts
  • Maintenance: every 6,000 operating hours
  • Power Consumption: 13 kW (integrated chiller)
  • Power supply (3 phase): 200 to 480 V, 50/60 Hz (as per client’s local requirements)
  • Start-up time: within 10 minutes
  • Start/stop procedure: fully automatic, single switch operation
  • Advised plant room (l x w x h): 4.00 x 4.00 x 3.00 m
  • Weight: 1,300 kg
  • Ambient temperature: up to 45 °C; 113 °F
  • Relative humidity: up to 95%
  • Storage capacity: 300 liters
  • Storage vessel pressure: 0.3 – 3 bar(g)
  • Site installation time: 2 days
  • Noise level: 72 dBA

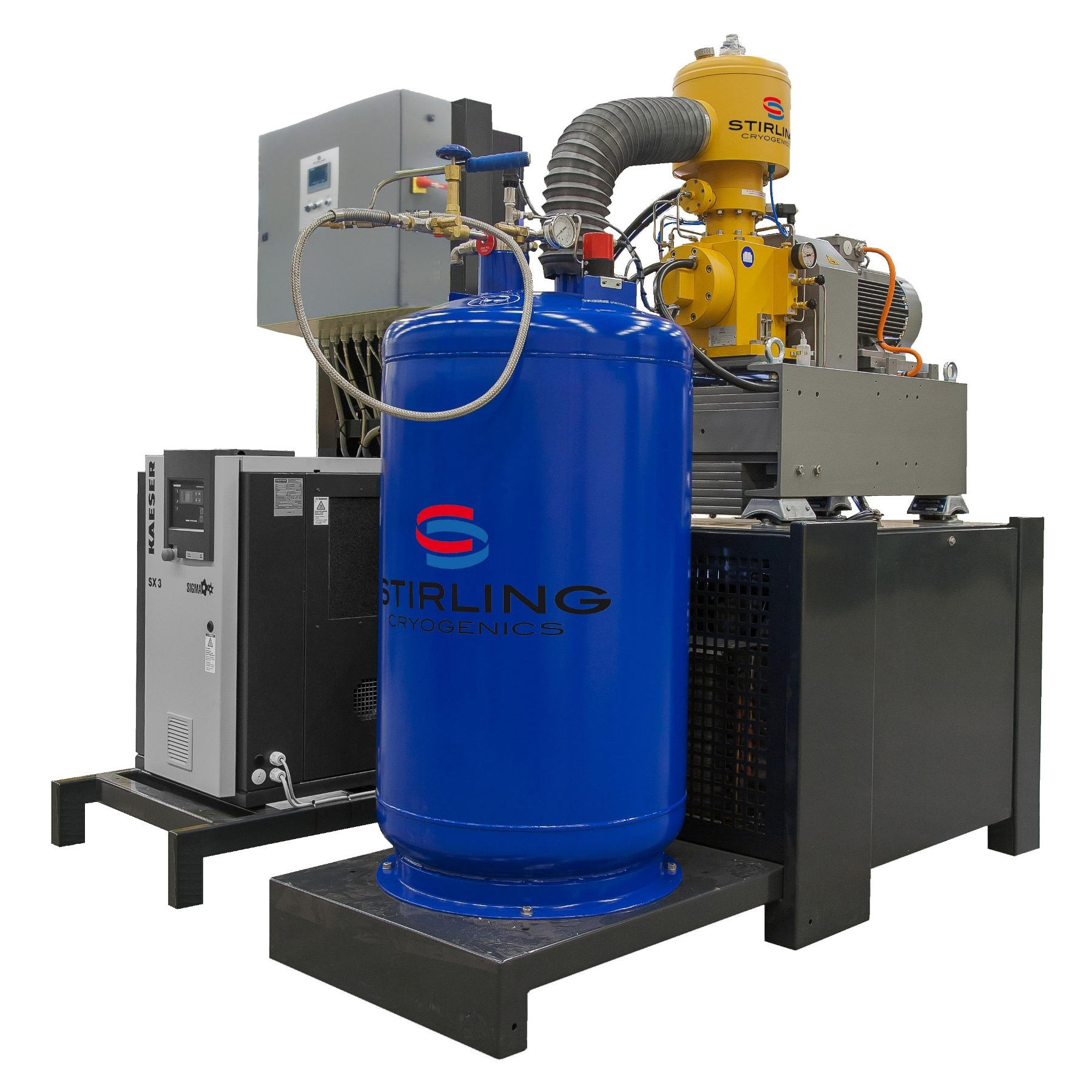

StirLIN-1 Economy
Up to 7 liters/hr LN2

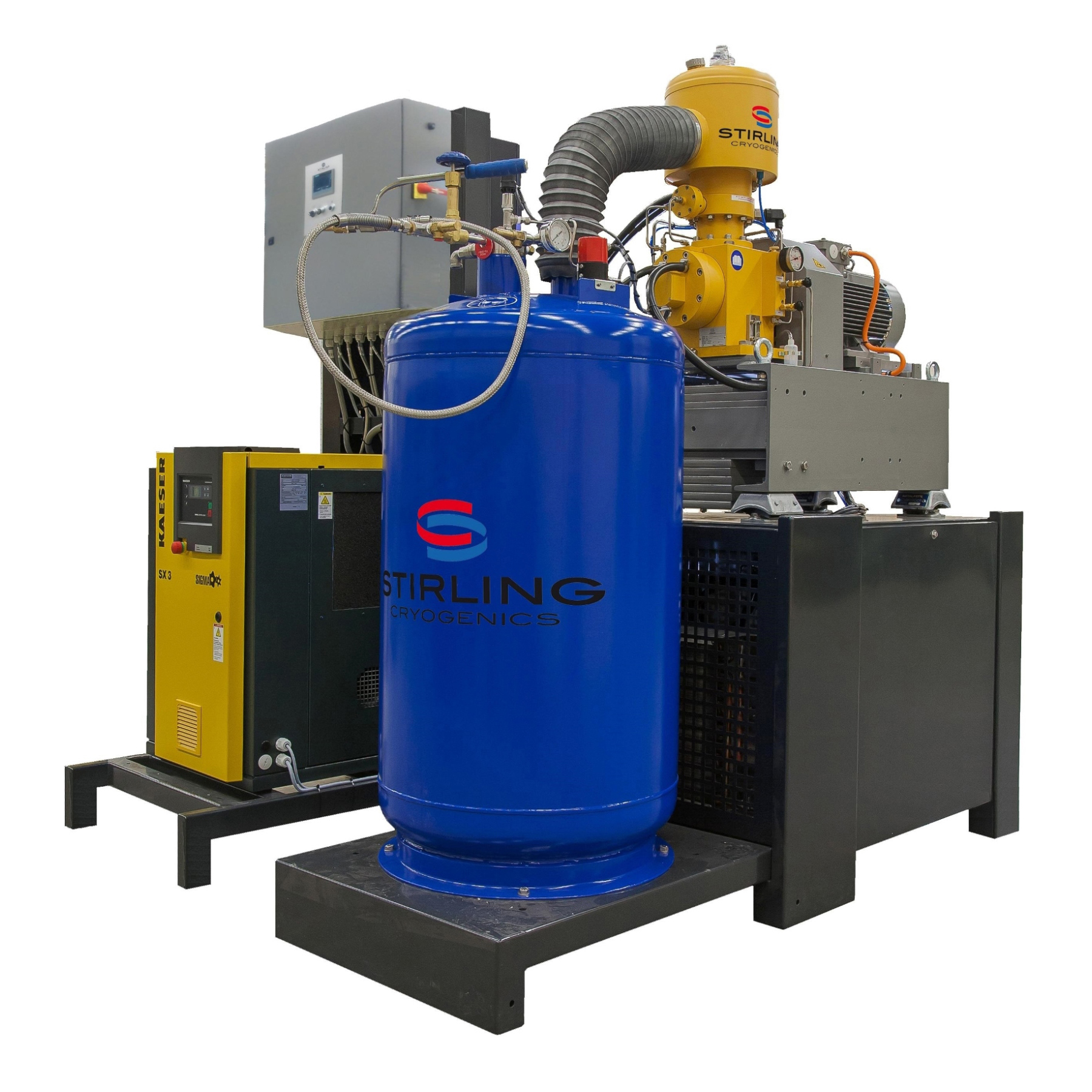

StirLIN-1 Compact
Up to 16.5 liters/hr LN2

Technical information

  • Production capacity: at least 10 liters of liquid nitrogen per hour
  • Purity: 99% nitrogen + inerts
  • Maintenance: every 6,000 operating hours
  • Cooling water consumption: 1.000 l/h
  • Power consumption: 17 kW
  • Power supply (3 phase): 200 to 480 V, 50/60 Hz (as per client’s local requirements)
  • Start-up time: within 10 minutes
  • Start/stop procedure: fully automatic, single switch operation
  • Advised plant room (l x w x h): 3,50 x 3,50 x 3.00 m
  • Weight: 1.500 kg
  • Ambient temperature: up to 45 °C; 113 °F
  • Relative humidity: up to 95%
  • Storage capacity: 500 liters
  • Storage vessel pressure: 0.3 – 5 bar(g)
  • Site installation time: 2 days
  • Noise level: 72 dBA

Technical information

  • Production capacity: at least 21 liters of liquid nitrogen per hour
  • Purity: at least 99% nitrogen + inerts
  • Maintenance: every 8,000 operating hours
  • Cooling water consumption: 2,000 l / hr
  • Power consumption: 34 kW
  • Power supply (3 phase): 200 to 480 V, 50/60 Hz (as per client’s local requirements)
  • Start-up time: within 10 minutes
  • Start / stop procedure: fully automatic, single switch operation
  • Advised plant room (lxwxh): 5.00 x 7.00 x 2.50 m
  • Weight: 2,200 kg
  • Ambient temperature: up to 45 ° C; 113 ° F
  • Relative humidity: up to 95%
  • Storage capacity: 1,000 liters
  • Storage vessel pressure: 0.3 – 5 bar (g)
  • Site installation time: 3 – 5 days
  • Noise level: 72 dBA

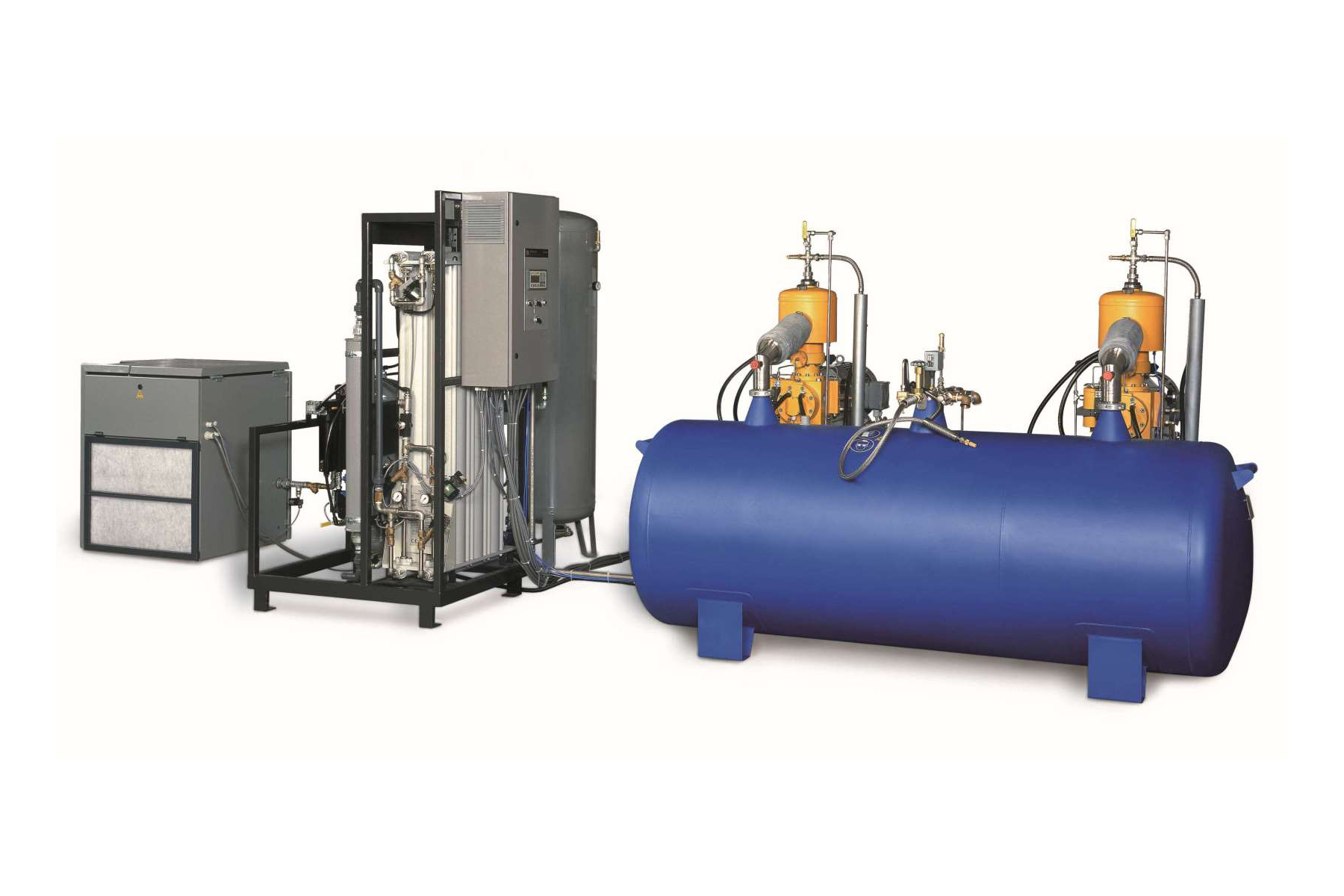

StirLIN-2
Up to 24 liters / hr LN 2

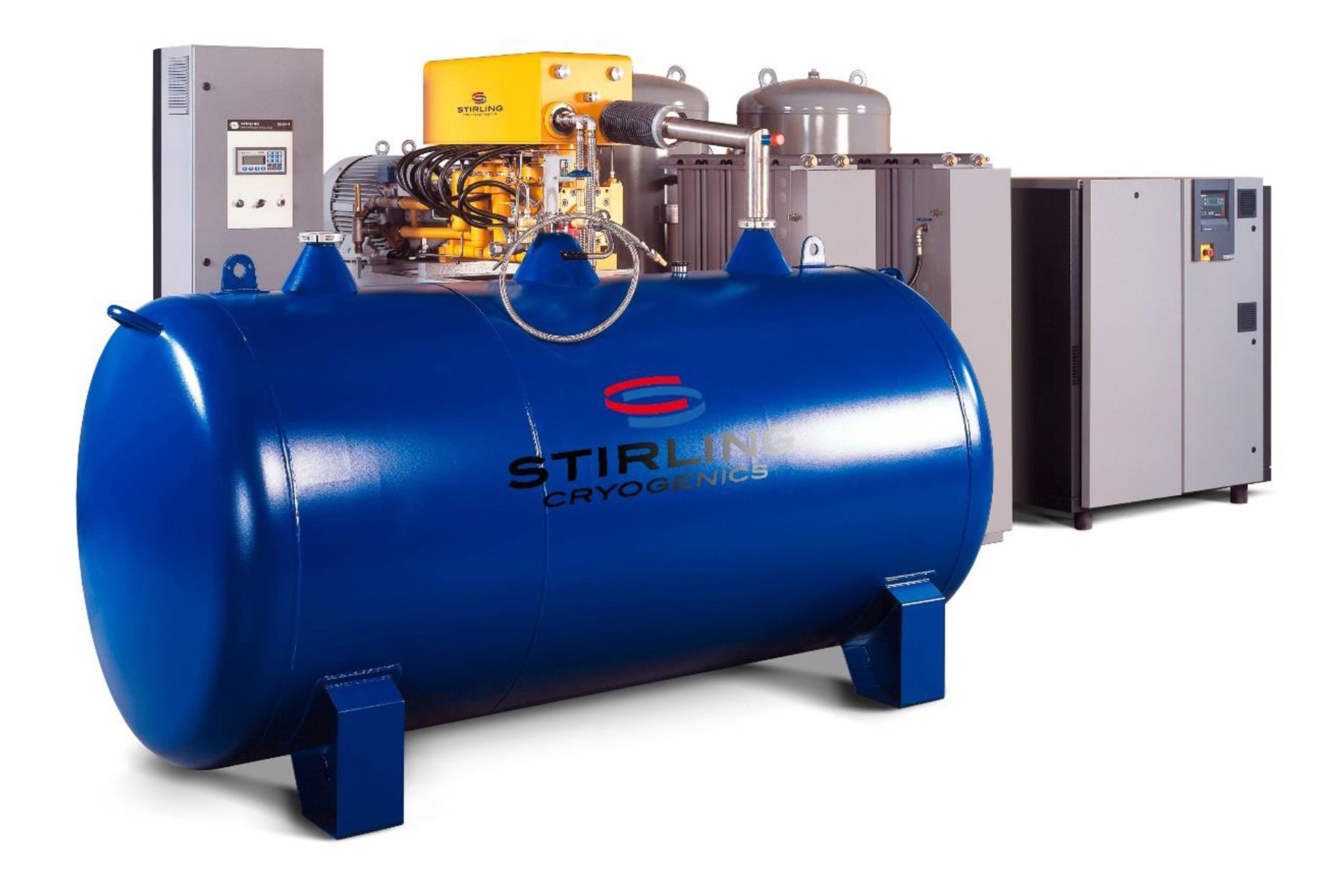

StirLIN-4
Up to 75 liters/hr LN2

Technical information

  • Production capacity: at least 44 liters of liquid nitrogen per hour
  • Purity: 99% nitrogen + inerts
  • Maintenance: every 6.000 operating hours
  • Cooling water consumption: 4.500 l/hr
  • Power consumption: 62 kW
  • Power supply (3 phase): 200 to 480 V, 50/60 Hz (as per client’s local requirements)
  • Start-up time: within 10 minutes
  • Start/stop procedure: fully automatic, single switch operation
  • Advised plant room(l x w x h): 6,50 x 4,80 x 3,00 m
  • Weight: 4.000 kg
  • Ambient temperature: up to 45 °C; 113 °F
  • Relative humidity: up to 95%
  • Storage capacity: 2.000 liters
  • Storage vessel pressure: 0.4 – 5 bar(g)
  • Site installation time: 4 – 6 days
  • Noise level: 72 dBA

Technical information

  • Production capacity: at least 89 liters of liquid nitrogen per hour
  • Purity: 99% nitrogen + inerts
  • Maintenance: every 6,000 operating hours
  • Cooling water consumption: 9.000 l/hr
  • Power Consumption: 129 kW
  • Power supply (3 phase): 200 to 480 V, 50/60 Hz (as per client’s local requirements)
  • Start-up time: within 10 minutes
  • Start/stop procedure: fully automatic, single switch operation
  • Advised plant room (l x w x h): 6,50 x 5.80 x 3.00 m
  • Weight: 5.200 kg
  • Ambient temperature: up to 45 °C; 113 °F
  • Relative humidity: up to 95%
  • Storage capacity: 2,000 liters
  • Storage vessel pressure: 0.4 – 5 bar(g)
  • Site installation time: 4 – 6 days
  • Noise level: 74 dBA

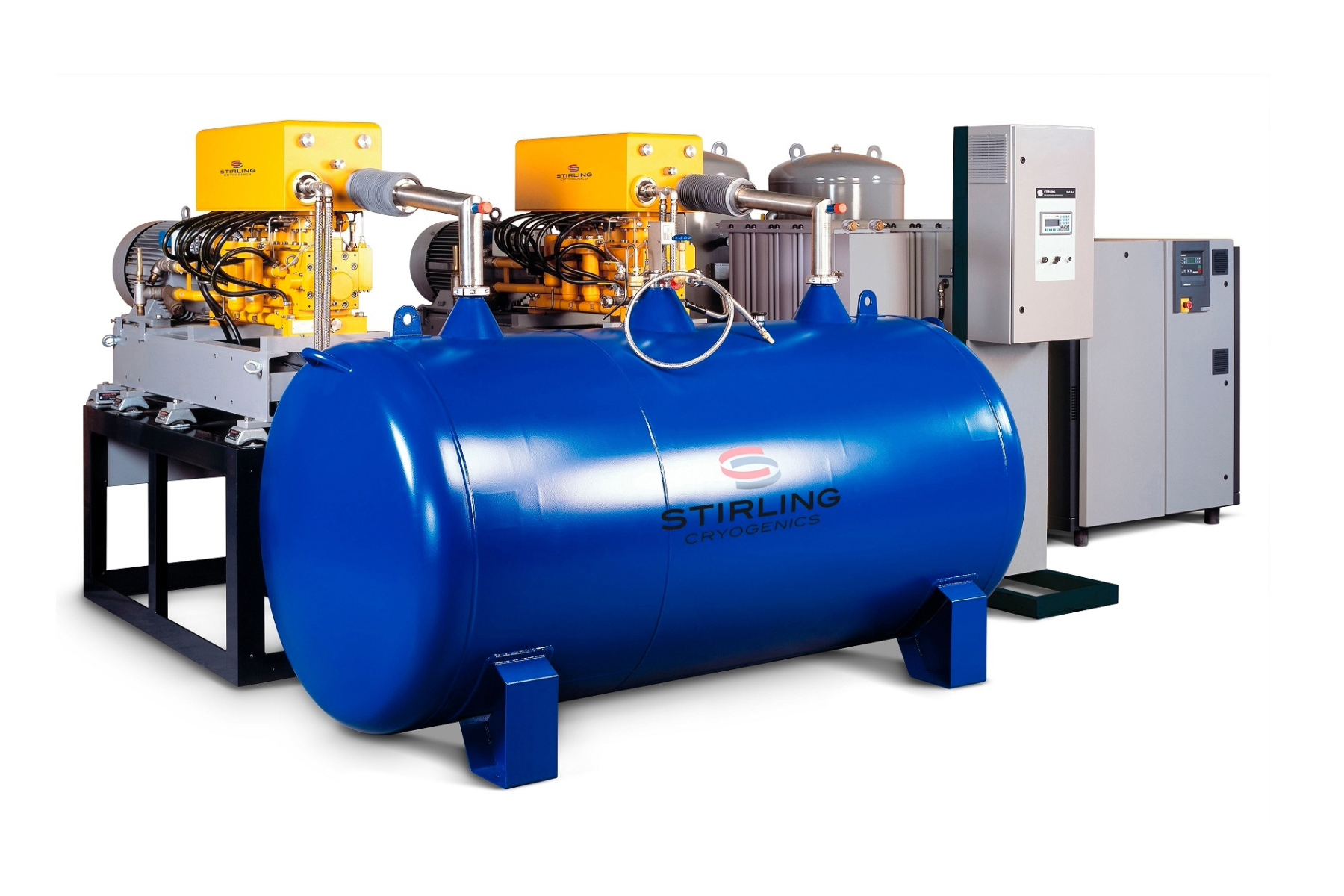

StirLIN-8
Up to 151 liters/hr LN2

The Storage of Very Cold Cryogens

Store / Transport your Liquid Nitrogen in our World Class Cryocans, Liquid Nitrogen Containers.

Cryocans / LN2 Containers Capacity : 0.5 Litre to 51.4 litres

Pressurized Liquid Nitrogen (LN2) Containers : 200 litres / 250 litres

Wide Mouth Liquid Nitrogen (LN2) Containers : 360 litres / 500 litres

Most Rugged, Minimum Rate of Evaporation, Suitable for Indian Conditions.

On-site Warranty and Competitive pricing.
